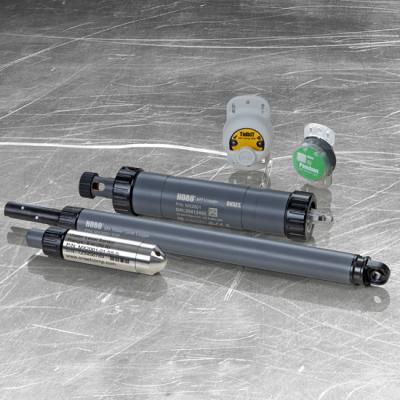

![Choose-your-Solution[1]-Stand-alone-MX2200-MX2001 (1)](https://esi.com.my/wp-content/uploads/2025/08/Choose-your-Solution1-Stand-alone-MX2200-MX2001-1.jpg "Choose-your-Solution[1]-Stand-alone-MX2200-MX2001 (1)")
Basic Package
Components included:
- Water Level Sensor - 9m (30’) Stainless Steel
- MX2001 Direct Read Cable - 0.6m Cable
- HOBOnet Water Level Sensor Interface
- Well Cap for MicroRX Water Level Stations
Intermediate Package
Components included:
- Water Level Sensor - 76m (250’) Stainless Steel
- MX2001 Direct Read Cable - 1.4m Cable
- HOBOnet Water Level Sensor Interface
- Well Cap for MicroRX Water Level Stations

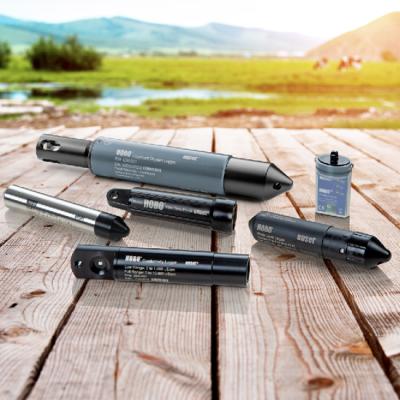

![Choose-Your-Solution[2]_Stand-alone-Optical](https://esi.com.my/wp-content/uploads/2025/08/Choose-Your-Solution2_Stand-alone-Optical.jpg "Choose-Your-Solution[2]_Stand-alone-Optical")
Advanced Package
Components included:
- Water Level Sensor - 9m (30’) Titanium/Acetal
- MX2001 Direct Read Cable - 1.8m Cable
- HOBOnet Water Level Sensor Interface
- Well Cap for MicroRX Water Level Stations
Specifications :
Water Level Measurement:
- Range: 0 to 10.3 m (0 to 34 ft)
- Accuracy: ±0.05% of full scale
- Resolution: 1 mm (0.04 in)
Temperature Measurement:
- Temp range: -20°C to 50°C (-4°F to 122°F)
- Accuracy: ±0.2°C
- Resolution: 0.01°C
Pressure Sensor:
- Gauge type with barometric compensation
- Compatible with submersible deployment up to 10.3 m
- Integrated with HOBOnet logging system
Connectivity & Power:
- Wireless interface via HOBOnet network (921 MHz)
- Powered via battery or external DC supply
- Remote data access and configuration supported
Water Level Sensor (9m Stainless Steel / 76m Stainless Steel / 9m Titanium/Acetal)
-
Measures water depth up to 9 m (30’) or 76 m (250’) depending on model.
-
Construction: Stainless steel or Titanium/Acetal for corrosion resistance and long-term deployment.
-
Accuracy: ±0.05% of full scale; suitable for submersible applications.
HOBOnet Water Level Sensor Interface
-
Connects water level sensors to HOBOnet wireless network for remote monitoring.
-
Wireless frequency: 921 MHz (Taiwan version) for long-range data transmission.
-
Supports battery or external DC power; configurable alarms for high/low water levels.
MX2001 Direct Read Cable
-
Provides direct wired connection from MX2001 logger to water level sensor.
-
Cable length: flexible, compatible with standard deployment distances.
-
Enables real-time water level and temperature readings without wireless interface.
Additional Sensors & Accessories:
- Rainfall Sensor: 0–10.2 cm/hr (0–4 in/hr), for monitoring precipitation
- Temperature/RH Sensor: -40° to 75°C, 0–100% RH, for environmental monitoring
- Leaf Wetness Sensor: Detects wet/dry conditions on surfaces for irrigation studies
Deployment Accessories:
- Protective PVC housing for long-term submersion
- Mounting brackets and cable extensions up to 30 m
- Buoy floats or stainless steel loops for water surface deployment
Power & Alerts:
- Optional solar panel support with battery backup
- Configurable alarms for high/low water levels
- Remote monitoring and data logging through HOBOnet network
