Basic Package
Components included:
- Whole System (Logger, Sensor, and Cable)

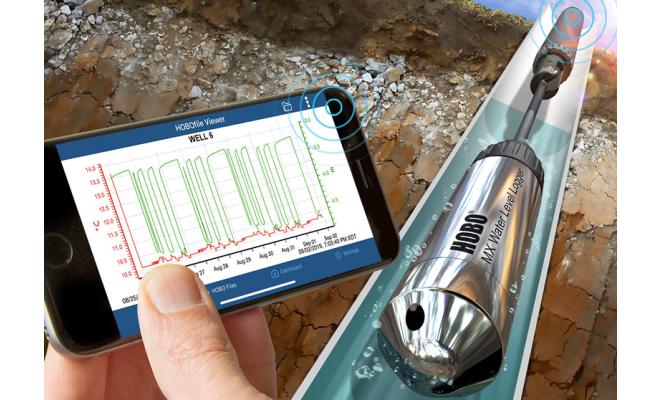

- HOBO Water Level Data Logger - Stainless Steel - 9 Meter (30') range
- MX2001 Direct Read Cable - 0.6m Cable
- Well Cap
Intermediate Package
Components included:
-
Whole System (Logger, Sensor, and Cable)
-
HOBO Water Level Data Logger - Stainless Steel - 30 Meter (100') range
-
MX2001 Direct Read Cable - 3.0m Cable
-
Well Cap
Advanced Package
Components included:
-
Whole System (Logger, Sensor, and Cable)
-
HOBO Water Level Data Logger - Titanium - 9 Meter (30') range
-
MX2001 Direct Read Cable - 11m Cable
-
Well Cap
Specifications :
Water Level & Depth:
- Measurement range: 0 to 10.3 m (0 to 34 ft)
- Accuracy: ±0.05% of full scale
- Resolution: 1 mm (0.04 in)
Temperature:
- Temp range: -20°C to 50°C (-4°F to 122°F)
- Accuracy: ±0.2°C
- Resolution: 0.01°C
Pressure Sensor:
- Range: 0 to 150 psi (0 to 10.3 m of water)
- Accuracy: ±0.05% of full scale
- Compensated for barometric pressure
Logging & Data:
- Logging rate: 1 second to 18 hours
- Memory: Up to 64,000 measurements
- Start/Stop Modes: Immediate, date & time, interval, memory full
Power & Battery:
-
Battery type: 2 AA lithium batteries
-
Battery life: ~1 year at 5-minute logging interval
Operating Range:
-
Pressure housing: Submersible up to 10.3 m (34 ft)
-
Operating temperature: -20° to 50°C (-4° to 122°F)
Connectivity & Options:
-
Optional wireless interface via MX2001-W for Bluetooth configuration and data download
Physical:
- Dimensions: 10.2 cm x 3.8 cm diameter
- Weight: 340 g
